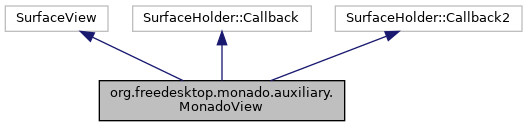

Inheritance diagram for org.freedesktop.monado.auxiliary.MonadoView:

[legend]

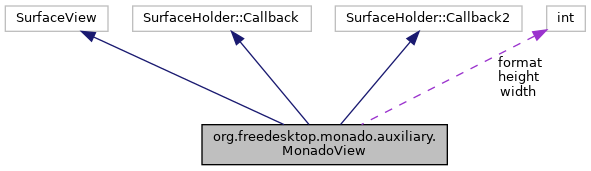

Collaboration diagram for org.freedesktop.monado.auxiliary.MonadoView:

[legend]

Public Member Functions
	MonadoView (Context context)

long	getNativePointer ()

SurfaceHolder	waitGetSurfaceHolder (int wait_ms)
	Block up to a specified amount of time, waiting for the surfaceCreated callback to be fired and populate the currentSurfaceHolder. More...

void	markAsDiscardedByNative ()
	Change the flag and notify those waiting on it, to indicate that native code is done with this object. More...

void	surfaceCreated (@NonNull SurfaceHolder surfaceHolder)

void	surfaceChanged ( @NonNull SurfaceHolder surfaceHolder, int format, int width, int height)

void	surfaceDestroyed (@NonNull SurfaceHolder surfaceHolder)

void	surfaceRedrawNeeded (@NonNull SurfaceHolder surfaceHolder)

Static Public Member Functions
static MonadoView	attachToActivity (@NonNull final Activity activity)
	Construct and start attaching a MonadoView to a client application. More...

static MonadoView	attachToWindow ( @NonNull final Context displayContext, long nativePointer, WindowManager.LayoutParams lp) throws IllegalArgumentException
	Construct and start attaching a MonadoView to window. More...

static void	removeFromWindow (@NonNull MonadoView view)
	Remove given MonadoView from window. More...

static DisplayMetrics	getDisplayMetrics (@NonNull Context context)

static float	getDisplayRefreshRate (@NonNull Context context)

static int	getDisplayModeIdWidth ( @NonNull final Context context, int display, int displayModeId)
	Get the width of the specified display mode on the specified display ID. More...

static int	getDisplayModeIdHeight ( @NonNull final Context context, int display, int displayModeId)
	Get the height of the specified display mode on the specified display ID. More...

static float[]	getSupportedRefreshRates (@NonNull Context context)

Data Fields
int	width = -1

int	height = -1

int	format = -1

Member Function Documentation

◆ attachToActivity()

static MonadoView org.freedesktop.monado.auxiliary.MonadoView.attachToActivity ( @NonNull final Activity activity )

inlinestatic

Construct and start attaching a MonadoView to a client application.

Parameters

activity The activity to attach to.

Returns: The MonadoView instance created and asynchronously attached.

◆ attachToWindow()

static MonadoView org.freedesktop.monado.auxiliary.MonadoView.attachToWindow	(	@NonNull final Context	displayContext,
		long	nativePointer,
		WindowManager.LayoutParams	lp
	)		throws IllegalArgumentException

inlinestatic

Construct and start attaching a MonadoView to window.

Parameters

displayContext	Display context used for looking for target window.
nativePointer	The native android_custom_surface pointer, cast to a long.
lp	Layout parameters associated with view.

Returns: The MonadoView instance created and asynchronously attached.

◆ getDisplayModeIdHeight()

static int org.freedesktop.monado.auxiliary.MonadoView.getDisplayModeIdHeight	(	@NonNull final Context	context,
		int	display,
		int	displayModeId
	)

inlinestatic

Get the height of the specified display mode on the specified display ID.

If the specified mode ID is not in the list of supported mode IDs for the specified display ID, then a value of 0 is returned.

Parameters

context	Display context used for looking for target window.
display	The display ID for which the mode is to be queried.
displayModeId	The display mode ID for which the height is returned. This is a zero-indexed mode ID.

Returns: The height in pixels for the specified mode ID on the specified display.

◆ getDisplayModeIdWidth()

static int org.freedesktop.monado.auxiliary.MonadoView.getDisplayModeIdWidth	(	@NonNull final Context	context,
		int	display,
		int	displayModeId
	)

inlinestatic

Get the width of the specified display mode on the specified display ID.

If the specified mode ID is not in the list of supported mode IDs for the specified display ID, then a value of 0 is returned.

Parameters

context	Display context used for looking for target window.
display	The display ID for which the mode is to be queried.
displayModeId	The display mode ID for which the width is returned. This is a zero-indexed mode ID.

Returns: The width in pixels for the specified mode ID on the specified display.

◆ markAsDiscardedByNative()

void org.freedesktop.monado.auxiliary.MonadoView.markAsDiscardedByNative ( )

inline

Change the flag and notify those waiting on it, to indicate that native code is done with this object.

Called by native code!

References org.freedesktop.monado.auxiliary.NativeCounterpart.markAsDiscardedByNative().

◆ removeFromWindow()

static void org.freedesktop.monado.auxiliary.MonadoView.removeFromWindow ( @NonNull MonadoView view )

inlinestatic

Remove given MonadoView from window.

Parameters

view	The view to remove.

◆ waitGetSurfaceHolder()

SurfaceHolder org.freedesktop.monado.auxiliary.MonadoView.waitGetSurfaceHolder ( int wait_ms )

inline

Block up to a specified amount of time, waiting for the surfaceCreated callback to be fired and populate the currentSurfaceHolder.

If it returns a SurfaceHolder, the usedByNativeCode flag will be set.

Called by native code!

Parameters

wait_ms Max duration you prefer to wait, in milliseconds. Spurious wakeups mean this not be totally precise.

Returns: A SurfaceHolder or null.

References org.freedesktop.monado.auxiliary.NativeCounterpart.markAsUsedByNativeCode().

The documentation for this class was generated from the following file:

auxiliary/android/src/main/java/org/freedesktop/monado/auxiliary/MonadoView.java
