b_app_instance Struct Reference

Inheritance diagram for b_app_instance:

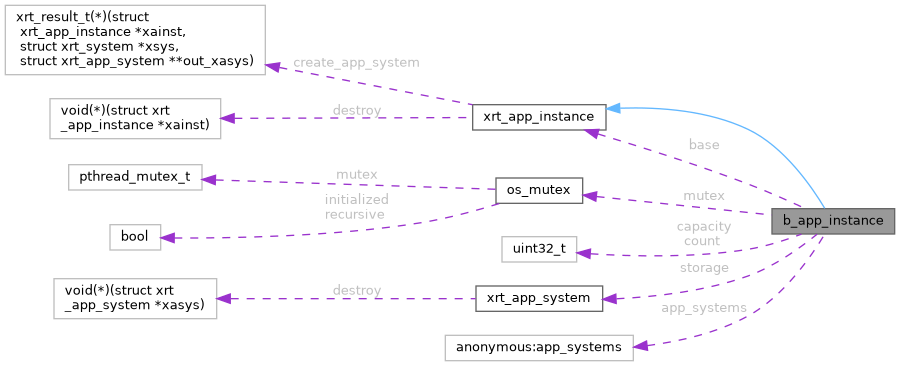

Collaboration diagram for b_app_instance:

Public Member Functions
struct b_app_instance *	b_app_instance_create (void)
	Create a b_app_instance, a fully working xrt_app_instance.

Data Fields
struct xrt_app_instance	base
struct {
struct os_mutex   mutex
uint32_t   count
	Number of application systems stored. More...
uint32_t   capacity
	Capacity of the storage pointer. More...
struct xrt_app_system **   storage
	The storage pointer for all the application systems. More...
}	app_systems
	Data for stored app systems.
Data Fields inherited from xrt_app_instance
xrt_result_t(*	create_app_system )(struct xrt_app_instance *xainst, struct xrt_system *xsys, struct xrt_app_system **out_xasys)
	Creates an application system from the passed system.
void(*	destroy )(struct xrt_app_instance *xainst)
	Destroy the application instance and its owned objects.

Protected Member Functions
bool	b_app_instance_init (struct b_app_instance *bainst, void(*destroy_fn)(struct xrt_app_instance *))
	Inits a b_app_instance struct when used as a parent class, only to be used externally by the derived class.
void	b_app_instance_fini (struct b_app_instance *bainst)
	Finalizes a b_app_instance struct when used as a parent class, only to be used by the derived class.

Additional Inherited Members
Static Public Member Functions inherited from xrt_app_instance
static XRT_NONNULL_ALL xrt_result_t	xrt_app_instance_create_app_system (struct xrt_app_instance *xainst, struct xrt_system *xsys, struct xrt_app_system **out_xasys)
	Creates an application system from the passed system.
static XRT_NONNULL_ALL void	xrt_app_instance_destroy (struct xrt_app_instance **xainst_ptr)
	Destroy the application instance and its owned objects.

Field Documentation

[struct]

struct { ... } b_app_instance::app_systems

Data for stored app systems.

Referenced by app_system_destroy(), b_app_instance_fini(), and b_app_instance_init().

capacity

uint32_t b_app_instance::capacity

Capacity of the storage pointer.

count

uint32_t b_app_instance::count

Number of application systems stored.

Referenced by app_system_destroy().

storage

struct xrt_app_system** b_app_instance::storage

The storage pointer for all the application systems.

Referenced by app_system_destroy().

---

The documentation for this struct was generated from the following file:

• base/b_app_policy.h
