os_serial_device Interface Reference

Representing a single serial interface on a device. More...

#include <os/os_serial.h>

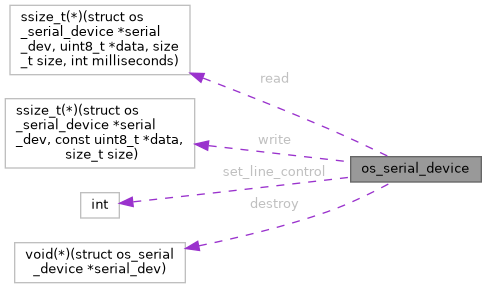

Collaboration diagram for os_serial_device:

Static Public Member Functions
static ssize_t	os_serial_read (struct os_serial_device *serial_dev, uint8_t *data, size_t size, int milliseconds)
	Read the next input report, if any, from the given serial device.
static ssize_t	os_serial_write (struct os_serial_device *serial_dev, const uint8_t *data, size_t size)
	Write an output report to the given device.
static int	os_serial_set_line_control (struct os_serial_device *serial_dev, bool dtr, bool rts)
	Set the line control signals (DTR and RTS) for the given serial device.
static void	os_serial_destroy (struct os_serial_device *serial_dev)
	Close and free the given device.

Data Fields
ssize_t(*	read )(struct os_serial_device *serial_dev, uint8_t *data, size_t size, int milliseconds)
ssize_t(*	write )(struct os_serial_device *serial_dev, const uint8_t *data, size_t size)
int(*	set_line_control )(struct os_serial_device *serial_dev, bool dtr, bool rts)
void(*	destroy )(struct os_serial_device *serial_dev)

Detailed Description

Representing a single serial interface on a device.

Member Function Documentation

os_serial_destroy()

static void os_serial_destroy ( struct os_serial_device *  serial_dev )

inlinestatic

Close and free the given device.

os_serial_read()

static ssize_t os_serial_read ( struct os_serial_device *  serial_dev, uint8_t *  data, size_t  size, int  milliseconds  )

inlinestatic

Read the next input report, if any, from the given serial device.

If milliseconds are negative, this call blocks indefinitely, 0 polls, and positive will block for that amount of milliseconds.

os_serial_set_line_control()

static int os_serial_set_line_control ( struct os_serial_device *  serial_dev, bool  dtr, bool  rts  )

inlinestatic

Set the line control signals (DTR and RTS) for the given serial device.

os_serial_write()

static ssize_t os_serial_write ( struct os_serial_device *  serial_dev, const uint8_t *  data, size_t  size  )

inlinestatic

Write an output report to the given device.

---

The documentation for this interface was generated from the following file:

• auxiliary/os/os_serial.h
