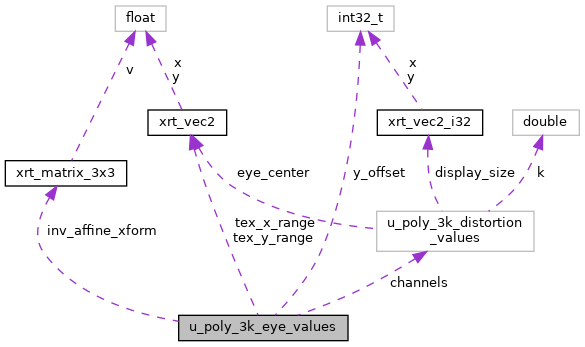

Collaboration diagram for u_poly_3k_eye_values:

[legend]

Data Fields
struct xrt_matrix_3x3	inv_affine_xform
	Inverse affine transform to move from (undistorted) pixels to image plane / normalised image coordinates. More...

struct xrt_vec2	tex_x_range
	tan(angle) FoV min/max for X and Y in the input texture More...

struct xrt_vec2	tex_y_range

int32_t	y_offset
	Hack values for WMR devices with weird distortions. More...

struct u_poly_3k_distortion_values	channels [3]

Field Documentation

◆ inv_affine_xform

struct xrt_matrix_3x3 u_poly_3k_eye_values::inv_affine_xform

Inverse affine transform to move from (undistorted) pixels to image plane / normalised image coordinates.

struct xrt_vec2 u_poly_3k_eye_values::tex_x_range

tan(angle) FoV min/max for X and Y in the input texture

int32_t u_poly_3k_eye_values::y_offset

Hack values for WMR devices with weird distortions.

The documentation for this struct was generated from the following file:
