xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar > Struct Template Reference

The shared implementation (between vector and scalar versions) of an integer IIR/exponential low-pass filter. More...

#include <math/m_lowpass_integer.hpp>

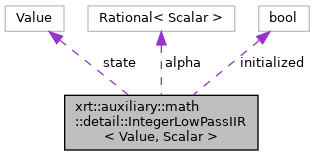

Collaboration diagram for xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar >:

Public Member Functions
	IntegerLowPassIIR (math::Rational< Scalar > alpha_, Value const &val)
	Constructor. More...
void	reset (Value const &val) noexcept
	Reset the filter to newly-created state. More...
void	addSample (Value const &sample, math::Rational< Scalar > weight=math::Rational< Scalar >::simplestUnity())
	Filter a sample, with an optional weight. More...

Data Fields
Value	state
math::Rational< Scalar >	alpha
bool	initialized {false}

Detailed Description

template<typename Value, typename Scalar>
struct xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar >

The shared implementation (between vector and scalar versions) of an integer IIR/exponential low-pass filter.

Constructor & Destructor Documentation

IntegerLowPassIIR()

template<typename Value , typename Scalar >

xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar >::IntegerLowPassIIR ( math::Rational< Scalar >  alpha_, Value const &  val  )

inlineexplicit

Constructor.

Parameters

alpha_	The alpha value used to blend between new input and existing state. Larger values mean more influence from new input. alpha_.isBetweenZeroAndOne() must be true.
val	The value to initialize the filter with. Does not affect the filter itself: only seen if you get the state before initializing the filter with the first sample.

Member Function Documentation

addSample()

template<typename Value , typename Scalar >

void xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar >::addSample ( Value const &  sample, math::Rational< Scalar >  weight = math::Rational<Scalar>::simplestUnity()  )

inline

Filter a sample, with an optional weight.

Parameters

sample	The value to filter
weight	An optional value between 0 and 1. The smaller this value, the less the current sample influences the filter state. For the first call, this is always assumed to be 1.

reset()

template<typename Value , typename Scalar >

void xrt::auxiliary::math::detail::IntegerLowPassIIR< Value, Scalar >::reset ( Value const &  val )

inlinenoexcept

Reset the filter to newly-created state.

Referenced by xrt::auxiliary::math::IntegerLowPassIIRFilter< Scalar >::reset().

---

The documentation for this struct was generated from the following file:

• auxiliary/math/m_lowpass_integer.hpp
