ipc_server_callbacks Struct Reference

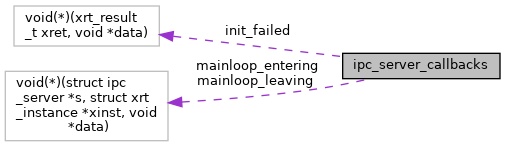

Collaboration diagram for ipc_server_callbacks:

Data Fields
void(*	init_failed )(xrt_result_t xret, void *data)
	The IPC server failed to init.
void(*	mainloop_entering )(struct ipc_server *s, struct xrt_instance *xinst, void *data)
	The service has completed init and is entering its mainloop.
void(*	mainloop_leaving )(struct ipc_server *s, struct xrt_instance *xinst, void *data)
	The service is leaving the mainloop, after this callback returns the IPC server will destroy all resources created.
void(*	client_connected )(struct ipc_server *s, uint32_t client_id, void *data)
	A new client has connected to the IPC server.
void(*	client_disconnected )(struct ipc_server *s, uint32_t client_id, void *data)
	A client has disconnected from the IPC server.

Field Documentation

client_connected

void(* ipc_server_callbacks::client_connected) (struct ipc_server *s, uint32_t client_id, void *data)

A new client has connected to the IPC server.

param s The IPC server. param client_id The ID of the newly connected client. param data User data given passed into the main function.

Referenced by ipc_server_main().

client_disconnected

void(* ipc_server_callbacks::client_disconnected) (struct ipc_server *s, uint32_t client_id, void *data)

A client has disconnected from the IPC server.

param s The IPC server. param client_id The ID of the newly connected client. param data User data given passed into the main function.

Referenced by ipc_server_main().

init_failed

void(* ipc_server_callbacks::init_failed) (xrt_result_t xret, void *data)

The IPC server failed to init.

Parameters

[in]	xret	The error code generated during init.
[in]	data	User data given passed into the main function.

Referenced by ipc_server_main(), and ipc_server_main_common().

mainloop_entering

void(* ipc_server_callbacks::mainloop_entering) (struct ipc_server *s, struct xrt_instance *xinst, void *data)

The service has completed init and is entering its mainloop.

Parameters

[in]	s	The IPC server.
[in]	xinst	Instance that was created by the IPC server.
[in]	data	User data given passed into the main function.

Referenced by ipc_server_main(), and ipc_server_main_common().

mainloop_leaving

void(* ipc_server_callbacks::mainloop_leaving) (struct ipc_server *s, struct xrt_instance *xinst, void *data)

The service is leaving the mainloop, after this callback returns the IPC server will destroy all resources created.

Parameters

[in]	s	The IPC server.
[in]	xinst	Instance that was created by the IPC server.
[in]	data	User data given passed into the main function.

Referenced by ipc_server_main(), and ipc_server_main_common().

---

The documentation for this struct was generated from the following file:

• ipc/server/ipc_server_interface.h
