uvc_fs Struct Reference

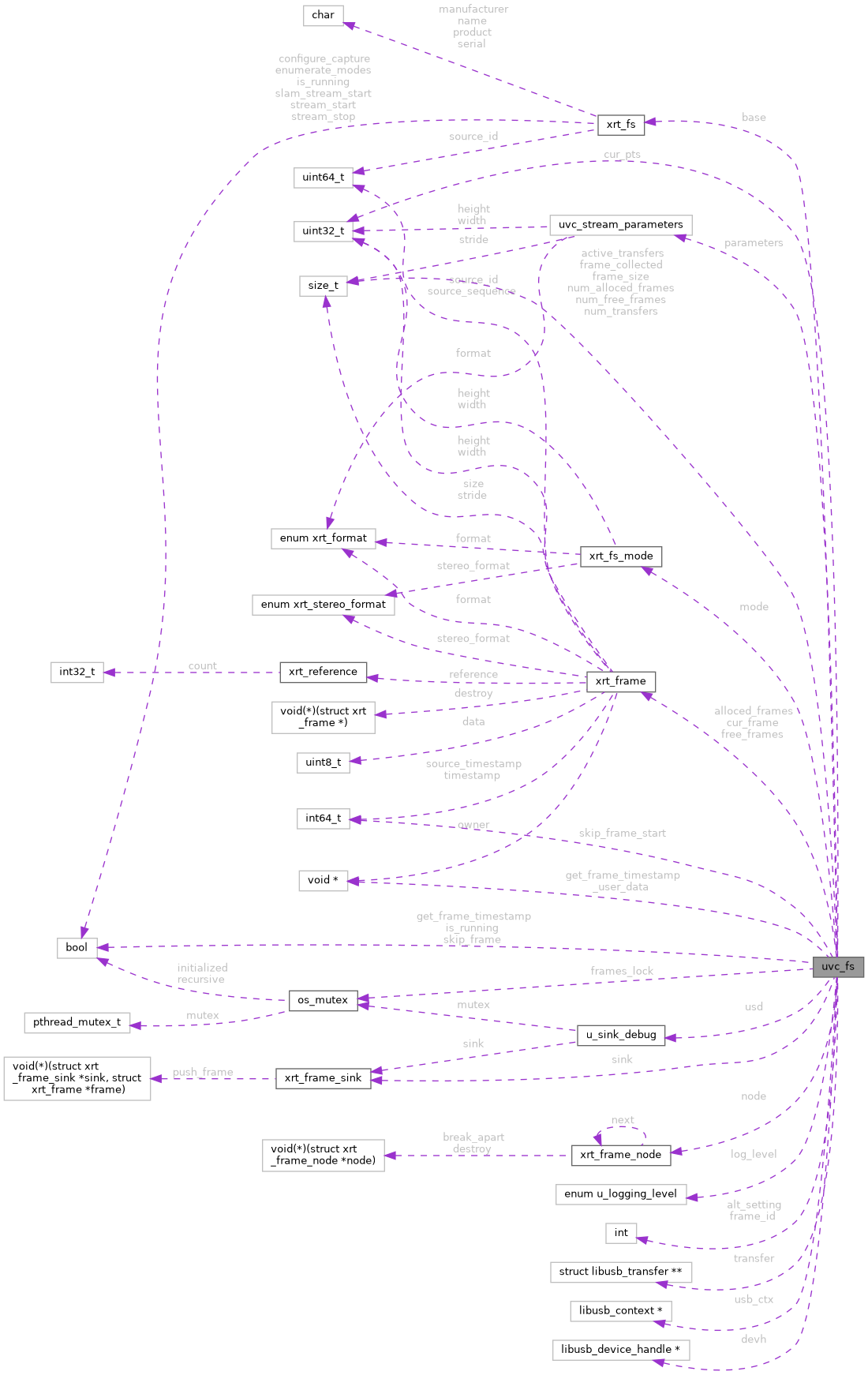

Collaboration diagram for uvc_fs:

Data Fields
struct xrt_fs	base
struct xrt_frame_node	node
struct u_sink_debug	usd
enum u_logging_level	log_level
struct xrt_fs_mode	mode
struct xrt_frame_sink *	sink
	Target sink.
struct uvc_stream_parameters	parameters
struct os_mutex	frames_lock
size_t	num_free_frames
struct xrt_frame **	free_frames
struct xrt_frame *	cur_frame
	Frame data destination.
size_t	frame_size
	Total size of a full frame in bytes.
int	frame_id
	Current frame ID.
uint32_t	cur_pts
	Current PTS being accumulated.
size_t	frame_collected
	Number of bytes collected from the current frame.
bool	skip_frame
	true if we're skipping the current frame
timepoint_ns	skip_frame_start
	Time at which we started skipping frames.
int	alt_setting
	USB streaming alt_setting.
size_t	num_transfers
struct libusb_transfer **	transfer
size_t	active_transfers
libusb_context *	usb_ctx
libusb_device_handle *	devh
bool	is_running
struct xrt_frame *	alloced_frames
size_t	num_alloced_frames
void *	get_frame_timestamp_user_data
get_frame_timestamp_t	get_frame_timestamp

Field Documentation

alt_setting

int uvc_fs::alt_setting

USB streaming alt_setting.

cur_frame

struct xrt_frame* uvc_fs::cur_frame

Frame data destination.

cur_pts

uint32_t uvc_fs::cur_pts

Current PTS being accumulated.

frame_collected

size_t uvc_fs::frame_collected

Number of bytes collected from the current frame.

frame_id

int uvc_fs::frame_id

Current frame ID.

frame_size

size_t uvc_fs::frame_size

Total size of a full frame in bytes.

sink

struct xrt_frame_sink* uvc_fs::sink

Target sink.

skip_frame

bool uvc_fs::skip_frame

true if we're skipping the current frame

skip_frame_start

timepoint_ns uvc_fs::skip_frame_start

Time at which we started skipping frames.

---

The documentation for this struct was generated from the following file:

• drivers/uvc/uvc_internal.h
