Implementation of the Vive Pro 2 HID interface. More...

#include "xrt/xrt_byte_order.h"
#include "xrt/xrt_compiler.h"
#include "os/os_hid.h"
#include "os/os_time.h"
#include "os/os_threading.h"
#include "util/u_logging.h"
#include "util/u_debug.h"
#include "util/u_misc.h"
#include "util/u_file.h"
#include "math/m_api.h"
#include <inttypes.h>
#include "vp2_hid.h"
#include "vp2_config.h"
#include "vp2_protocol.h"

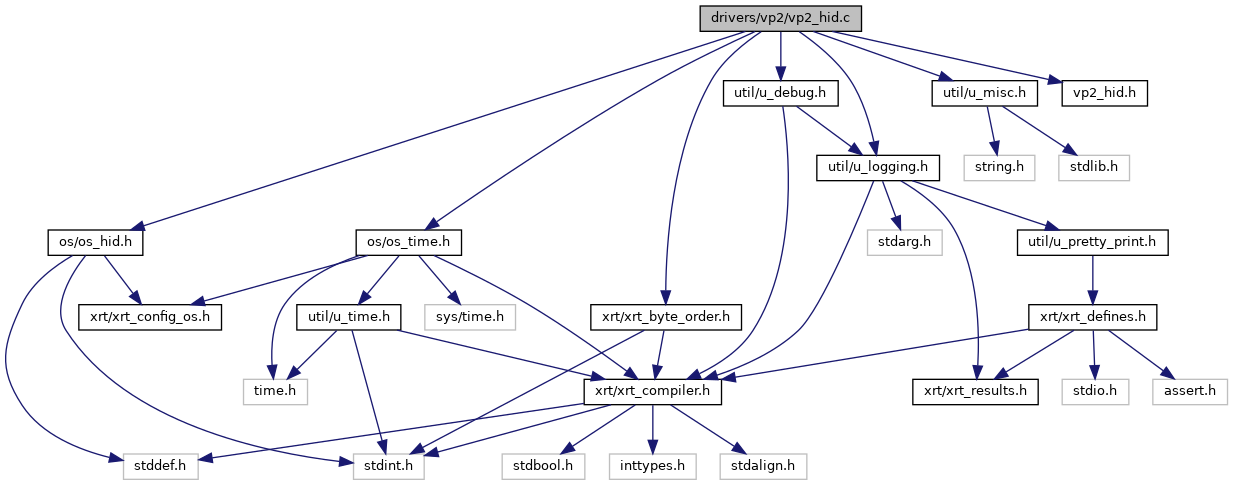

Include dependency graph for vp2_hid.c:

Data Structures
struct	vp2_hid

Macros
#define	VP2_TRACE(vp2, ...) U_LOG_IFL_T(vp2->log_level, __VA_ARGS__)

#define	VP2_DEBUG(vp2, ...) U_LOG_IFL_D(vp2->log_level, __VA_ARGS__)

#define	VP2_INFO(vp2, ...) U_LOG_IFL_I(vp2->log_level, __VA_ARGS__)

#define	VP2_WARN(vp2, ...) U_LOG_IFL_W(vp2->log_level, __VA_ARGS__)

#define	VP2_ERROR(vp2, ...) U_LOG_IFL_E(vp2->log_level, __VA_ARGS__)

#define	VP2_CONFIG_FOLDER "vive_pro_2"

#define	VP2_WRITE_DELAY_NS (U_TIME_1MS_IN_NS * 10)
	Delay after every write so the MCU can handle it before the next one, the HTC driver waits this long between display requests.

#define	VP2_BUTTON_DEBOUNCE_REPORTS 2
	The buttons glitch for single status reports, for example mute flashing on while pressing the volume buttons, so a new button state is only accepted once it has been seen in this many reports in a row.

Functions
static int	vp2_write (struct vp2_hid vp2, uint8_t id, const uint8_t data, size_t size)

static int	vp2_write_feature (struct vp2_hid vp2, uint8_t id, uint16_t sub_id, const uint8_t data, size_t size)

static int	vp2_set_resolution (struct vp2_hid *vp2, enum vp2_resolution resolution)

static int	vp2_read (struct vp2_hid vp2, uint8_t id, const uint8_t prefix, size_t prefix_size, uint8_t *out_data, size_t out_size)

static void	vp2_drain_reads (struct vp2_hid *vp2)
	Reads and drops any reports that are already queued, for example status reports from an earlier session.

static int	vp2_get_config_size (struct vp2_hid vp2, size_t out_size)

static int	vp2_read_config (struct vp2_hid vp2, char out_config, size_t out_size)

static int	vp2_string_command (struct vp2_hid vp2, const char command, char *out, size_t out_size)
	Sends an ASCII command on VP2_REPORT_ID_STRING and reads back its reply as a null terminated string.

static int	vp2_read_serial (struct vp2_hid vp2, char out, size_t out_size)

static int	vp2_load_serial (struct vp2_hid *vp2)

static int	vp2_load_config (struct vp2_hid *vp2)

static int	vp2_send_noise_cancelling_commands (struct vp2_hid vp2, const char *commands, size_t command_count)

static int	vp2_enable_noise_cancelling (struct vp2_hid *vp2)

static int	vp2_disable_noise_cancelling (struct vp2_hid *vp2)

static int	vp2_write_feature_event (struct vp2_hid vp2, const struct vp2_feature_event event)

static int	vp2_set_status_polling (struct vp2_hid *vp2, bool enable)

static int	vp2_set_power_state (struct vp2_hid *vp2, enum vp2_power_state state)

static int	vp2_get_feature_state (struct vp2_hid vp2, struct vp2_feature_state out_state)
	Any GET_FEATURE of VP2_REPORT_ID_FEATURE returns the state block, no request is needed.

static int	vp2_display_query (struct vp2_hid vp2, const char request, char *out, size_t out_size)
	Sends a display request getter and reads back its reply.

static const char *	vp2_power_state_to_string (uint8_t state)

static void	vp2_flatten_reply (char *reply)
	Some replies are several lines, put them on one.

static void	vp2_log_feature_state (struct vp2_hid vp2, const struct vp2_feature_state state)

static void	vp2_log_status (struct vp2_hid *vp2)
	Logs everything the headset reports about itself.

static uint16_t	get_raw_buttons (const struct vp2_status_report *report)
	Button bytes from a status report, system in the high byte and the audio button in the low byte.

static void	handle_status_packet (struct vp2_hid vp2, const struct vp2_status_report report, uint16_t buttons)

static void *	status_thread_runner (void *ptr)

int	vp2_hid_open (struct os_hid_device hid_dev, struct vp2_hid *out_hid)

enum vp2_resolution	vp2_get_resolution (struct vp2_hid *vp2)

struct vp2_config *	vp2_get_config (struct vp2_hid *vpd)

const char *	vp2_get_serial (struct vp2_hid *vp2)

int	vp2_set_noise_cancelling (struct vp2_hid *vp2, bool enable)

float	vp2_get_brightness (struct vp2_hid *vp2)

int	vp2_set_brightness (struct vp2_hid *vp2, float brightness)

int	vp2_prepare_shutdown (struct vp2_hid *vp2)
	Prepares the display panels to have video terminated.

bool	vp2_get_status (struct vp2_hid vp2, bool out_proximity, float out_lens_separation_meters, bool out_system, bool out_volume_up, bool out_volume_down, bool *out_mute_mic)

void	vp2_hid_destroy (struct vp2_hid *vp2)

Detailed Description

Implementation of the Vive Pro 2 HID interface.

Author: Beyley Cardellio ep1cm.nosp@m.1n10.nosp@m.n123@.nosp@m.gmai.nosp@m.l.com

Macro Definition Documentation

◆ VP2_BUTTON_DEBOUNCE_REPORTS

#define VP2_BUTTON_DEBOUNCE_REPORTS 2

The buttons glitch for single status reports, for example mute flashing on while pressing the volume buttons, so a new button state is only accepted once it has been seen in this many reports in a row.

A status report comes in roughly every 52ms.
