oxr_resolver_for_bindings.c File Reference

Resolve suggested bindings into action cache IO. More...

#include "util/u_debug.h"
#include "util/u_misc.h"
#include "oxr_resolver_for_bindings.h"
#include "oxr_binding_profile.h"
#include "oxr_binding_registry.h"
#include "oxr_dpad_state.h"
#include "oxr_input_transform.h"
#include "oxr_priority_group_cache.h"
#include "oxr_rebinding_profile.h"
#include "oxr_session_action_context.h"
#include "oxr_suggested_profile.h"
#include "../oxr_conversions.h"
#include "../oxr_logger.h"
#include "../oxr_objects.h"
#include <string.h>

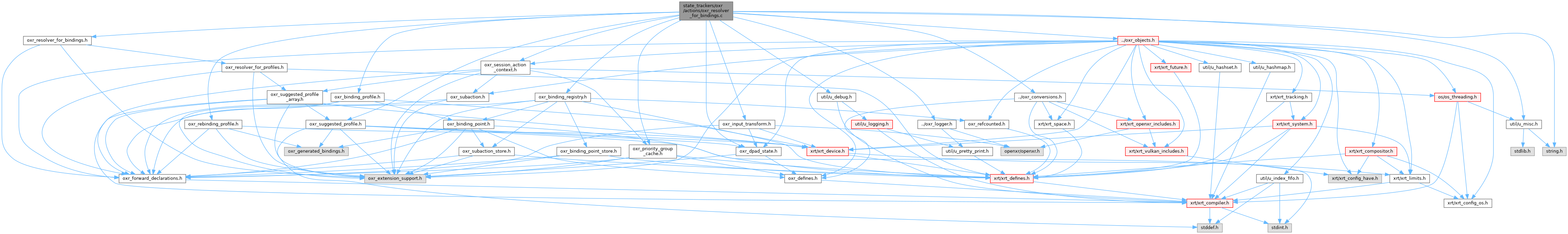

Include dependency graph for oxr_resolver_for_bindings.c:

Data Structures
struct	input_storage
struct	output_storage

Functions
static bool	find_xdev_input_name_from_pairs (const struct xrt_device *xdev, const struct xrt_binding_profile *xbp, enum xrt_input_name from_name, enum xrt_input_name *out_name)
static bool	is_action_type_output (XrActionType action_type)
static bool	binding_point_matches_action_type (const struct oxr_binding_point *point, XrActionType action_type)
static bool	resolve_upgrade_binding_point (struct oxr_sink_logger *slog, const struct oxr_binding_profile *profile, const struct oxr_binding_point *upgrade_point, XrActionType action_type, const struct oxr_binding_point **out_point)
static bool	resolve_binding_point (struct oxr_sink_logger *slog, const struct oxr_profile_resolver_info *info, const struct oxr_suggested_binding *suggested_binding, XrActionType action_type, const struct oxr_binding_point **out_point)
static bool	get_dpad_region_from_binding_point (const struct oxr_binding_point *binding_point, enum oxr_dpad_region *out_dpad_region)
static bool	find_matching_dpad (const struct oxr_dpad_entry *dpad_entry, XrPath dpad_emulation_path, const struct oxr_dpad_binding_modification **out_dpad_binding)
static void	append_resolved_input (struct oxr_logger *log, struct oxr_sink_logger *slog, const struct oxr_suggested_profile *profile, const struct oxr_suggested_binding *suggested_binding, const char *action_name, struct xrt_device *xdev, const struct xrt_binding_profile *xbp, const struct oxr_binding_point *binding_point, struct oxr_action_attachment *act_attached, struct input_storage *input_storage)
static void	append_resolved_output (struct oxr_sink_logger *slog, struct xrt_device *xdev, const struct xrt_binding_profile *xbp, const struct oxr_binding_point *binding_point, struct output_storage *storage)
static bool	suggested_binding_matches (const struct oxr_suggested_binding *binding, const struct oxr_action_attachment *act_attached, XrPath subaction_path)
void	oxr_resolver_populate_input (struct oxr_logger *log, struct oxr_sink_logger *slog, const struct oxr_profile_resolver_info *info, struct xrt_device *xdev, XrPath subaction_path, struct oxr_action_attachment *act_attached, struct oxr_action_cache *cache)
	Resolve suggested input bindings for one action/subaction path into cache.
void	oxr_resolver_populate_output (struct oxr_logger *log, struct oxr_sink_logger *slog, const struct oxr_profile_resolver_info *info, struct xrt_device *xdev, XrPath subaction_path, struct oxr_action_attachment *act_attached, struct oxr_action_cache *cache)
	Resolve suggested output bindings for one action/subaction path into cache.

Detailed Description

Resolve suggested bindings into action cache IO.

Function Documentation

oxr_resolver_populate_input()

void oxr_resolver_populate_input	(	struct oxr_logger *	log,
		struct oxr_sink_logger *	slog,
		const struct oxr_profile_resolver_info *	info,
		struct xrt_device *	xdev,
		XrPath	subaction_path,
		struct oxr_action_attachment *	act_attached,
		struct oxr_action_cache *	cache
	)

Resolve suggested input bindings for one action/subaction path into cache.

This is intentionally lower-level than the existing action binding path: it consumes the attached suggested-profile snapshot and resolves binding points at cache population time.

Assumes xdev is not NULL and cache has already been cleared by the caller.

References oxr_action_attachment::act_ref, oxr_action_ref::action_type, oxr_action_state::active, oxr_suggested_binding::binding_point, oxr_suggested_profile::bindings, oxr_action_ref::name, oxr_binding_point::profile, oxr_profile_resolver_info::profile, oxr_binding_point::templ, U_TYPED_ARRAY_CALLOC, oxr_profile_resolver_info::xbp, and XRT_STRUCT_INIT.

oxr_resolver_populate_output()

void oxr_resolver_populate_output	(	struct oxr_logger *	log,
		struct oxr_sink_logger *	slog,
		const struct oxr_profile_resolver_info *	info,
		struct xrt_device *	xdev,
		XrPath	subaction_path,
		struct oxr_action_attachment *	act_attached,
		struct oxr_action_cache *	cache
	)

Resolve suggested output bindings for one action/subaction path into cache.

Assumes xdev is not NULL and cache has already been cleared by the caller.

References oxr_action_attachment::act_ref, oxr_action_ref::action_type, oxr_action_state::active, oxr_suggested_binding::binding_point, oxr_suggested_profile::bindings, oxr_profile_resolver_info::profile, oxr_binding_point::templ, U_TYPED_ARRAY_CALLOC, oxr_profile_resolver_info::xbp, and XRT_STRUCT_INIT.
