xrt_io_cache_device Struct Reference

Per-device layout entry describing where a device's inputs and outputs sit in the flattened cache arrays. More...

#include <xrt/xrt_io_cache.h>

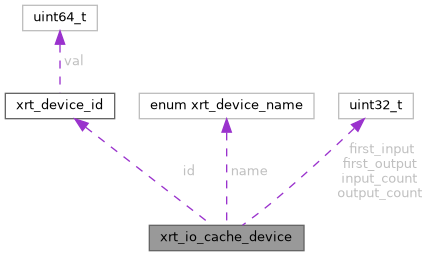

Collaboration diagram for xrt_io_cache_device:

Public Member Functions
	XRT_ALIGNAS (8) char str[XRT_DEVICE_NAME_LEN]
	Human-readable device name string.

Data Fields
struct xrt_device_id	id
	Unique identifier for this device.
enum xrt_device_name	name
	Device name enum.
uint32_t	first_input
	Index of this device's first input in the flattened input array.
uint32_t	input_count
	Number of inputs contributed by this device.
uint32_t	first_output
	Index of this device's first output in the flattened output array.
uint32_t	output_count
	Number of outputs contributed by this device.

Detailed Description

Per-device layout entry describing where a device's inputs and outputs sit in the flattened cache arrays.

Member Function Documentation

XRT_ALIGNAS()

xrt_io_cache_device::XRT_ALIGNAS

(

8

)

Human-readable device name string.

Field Documentation

first_input

uint32_t xrt_io_cache_device::first_input

Index of this device's first input in the flattened input array.

Referenced by oxr_io_cache::oxr_io_cache_device_inputs().

first_output

uint32_t xrt_io_cache_device::first_output

Index of this device's first output in the flattened output array.

Referenced by oxr_io_cache::oxr_io_cache_device_outputs().

id

struct xrt_device_id xrt_io_cache_device::id

Unique identifier for this device.

Referenced by ipcproto.common.Call::__init__(), and oxr_io_cache::oxr_io_cache_find_device().

input_count

uint32_t xrt_io_cache_device::input_count

Number of inputs contributed by this device.

Referenced by oxr_io_cache::oxr_io_cache_find_input(), and xrt_io_cache::xrt_io_cache_read().

name

enum xrt_device_name xrt_io_cache_device::name

Device name enum.

Referenced by ipcproto.common.Arg::__init__(), ipcproto.common.Call::__init__(), bindings.Profile::__init__(), ipcproto.common.Arg::dump(), ipcproto.common.Call::dump(), ipcproto.common.Arg::get_func_argument_in(), ipcproto.common.Arg::get_func_argument_out(), ipcproto.common.Arg::get_struct_field(), oxr_resolver_populate_profile(), ipcproto.common.Call::write_call_decl(), ipcproto.common.Call::write_handler_decl(), ipcproto.common.Call::write_receive_decl(), and ipcproto.common.Call::write_send_decl().

output_count

uint32_t xrt_io_cache_device::output_count

Number of outputs contributed by this device.

Referenced by oxr_io_cache::oxr_io_cache_has_output(), and xrt_io_cache::xrt_io_cache_read().

---

The documentation for this struct was generated from the following file:

• xrt/xrt_io_cache.h
