Encapsulates all the needed state to run the layer squasher and distortion passes, state object needs to be kept alive until the GPU work finishes. More...

#include <util/comp_high_level_render.h>

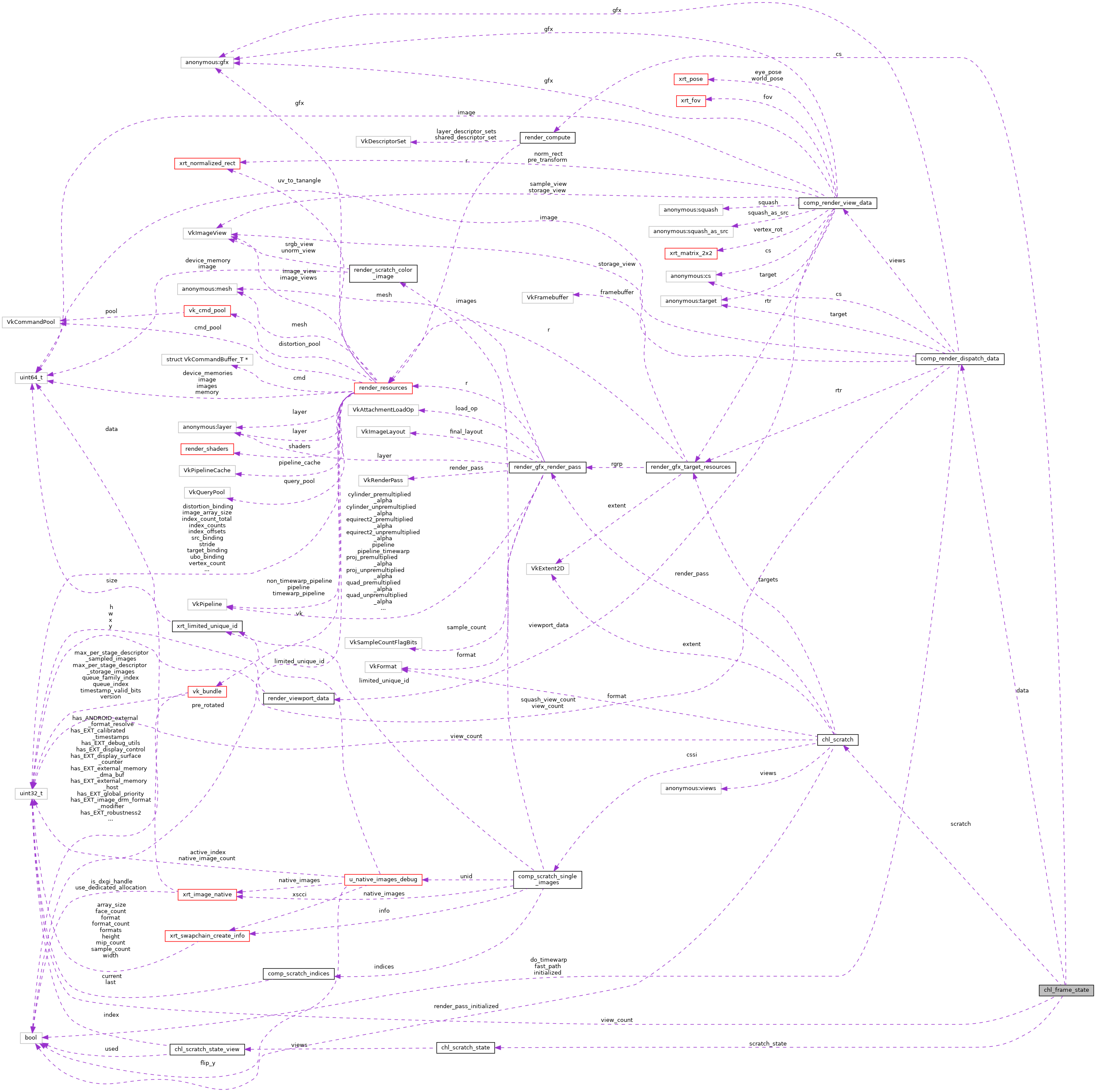

Collaboration diagram for chl_frame_state:

[legend]

Public Member Functions
void	chl_frame_state_init (struct chl_frame_state frame_state, struct render_resources rr, uint32_t view_count, bool do_timewarp, bool fast_path, struct chl_scratch *scratch)
	Create the Vulkan resources using the given `render_resources` and the `vk_bundle` it refers to. More...

void	chl_frame_state_fini (struct chl_frame_state *state)
	Frees all resources that this frame state tracks and manages the scratch images state. More...

void	chl_frame_state_gfx_set_views (struct chl_frame_state *frame_state, const struct xrt_pose world_pose[XRT_MAX_VIEWS], const struct xrt_pose eye_pose[XRT_MAX_VIEWS], const struct xrt_fov fov[XRT_MAX_VIEWS], uint32_t layer_count)
	Sets all the needed state to run the layer squasher to the scratch images, this is the graphics version. More...

void	chl_frame_state_gfx_set_target (struct chl_frame_state frame_state, struct render_gfx_target_resources target_rtr, const struct render_viewport_data target_viewport_datas[XRT_MAX_VIEWS], const struct xrt_matrix_2x2 vertex_rots[XRT_MAX_VIEWS])
	Adds the needed information to also perform a distortion step, reuses some information from the _set_views call and as such this needs to be called before calling this function. More...

void	chl_frame_state_cs_set_views (struct chl_frame_state *frame_state, const struct xrt_pose world_pose[XRT_MAX_VIEWS], const struct xrt_pose eye_pose[XRT_MAX_VIEWS], const struct xrt_fov fov[XRT_MAX_VIEWS], uint32_t layer_count)
	Sets all the needed state to run the layer squasher to the scratch images, this is the compute version. More...

void	chl_frame_state_cs_set_target (struct chl_frame_state *frame_state, VkImage target_image, VkImageView target_storage_view, const struct render_viewport_data views[XRT_MAX_VIEWS])
	Adds the needed information to also perform a distortion step, reuses some information from the _set_views call and as such this needs to be called before calling this function. More...

Static Public Member Functions
static void	chl_frame_state_gfx_default_pipeline (struct chl_frame_state frame_state, struct render_gfx render, const struct comp_layer layers, uint32_t layer_count, const struct xrt_pose world_poses[XRT_MAX_VIEWS], const struct xrt_pose eye_poses[XRT_MAX_VIEWS], const struct xrt_fov fovs[XRT_MAX_VIEWS], struct render_gfx_target_resources target_rtr, const struct render_viewport_data target_viewport_datas[XRT_MAX_VIEWS], const struct xrt_matrix_2x2 vertex_rots[XRT_MAX_VIEWS])
	A single do all function, runs the default graphics pipeline. More...

static void	chl_frame_state_cs_default_pipeline (struct chl_frame_state frame_state, struct render_compute render, const struct comp_layer *layers, uint32_t layer_count, const struct xrt_pose world_poses[XRT_MAX_VIEWS], const struct xrt_pose eye_poses[XRT_MAX_VIEWS], const struct xrt_fov fovs[XRT_MAX_VIEWS], VkImage target_image, VkImageView target_storage_view, const struct render_viewport_data target_viewport_datas[XRT_MAX_VIEWS])
	A single do all function, runs the default compute pipeline. More...

Data Fields
struct chl_scratch *	scratch

uint32_t	view_count

struct chl_scratch_state	scratch_state

struct comp_render_dispatch_data	data

struct render_compute	cs

Detailed Description

Encapsulates all the needed state to run the layer squasher and distortion passes, state object needs to be kept alive until the GPU work finishes.

None of the functions are thread safe so make sure to synchronize access.

The lifetime of this struct is one frame, but as stated above it needs to live for long enough that the GPU work has been finished.

@comp_util

Member Function Documentation

◆ chl_frame_state_cs_default_pipeline()

static void chl_frame_state_cs_default_pipeline	(	struct chl_frame_state *	frame_state,
		struct render_compute *	render,
		const struct comp_layer *	layers,
		uint32_t	layer_count,
		const struct xrt_pose	world_poses[XRT_MAX_VIEWS],
		const struct xrt_pose	eye_poses[XRT_MAX_VIEWS],
		const struct xrt_fov	fovs[XRT_MAX_VIEWS],
		VkImage	target_image,
		VkImageView	target_storage_view,
		const struct render_viewport_data	target_viewport_datas[XRT_MAX_VIEWS]
	)

inlinestatic

A single do all function, runs the default compute pipeline.

◆ chl_frame_state_cs_set_target()

void chl_frame_state_cs_set_target	(	struct chl_frame_state *	frame_state,
		VkImage	target_image,
		VkImageView	target_storage_view,
		const struct render_viewport_data	views[XRT_MAX_VIEWS]
	)

Adds the needed information to also perform a distortion step, reuses some information from the _set_views call and as such this needs to be called before calling this function.

This is the compute version.

◆ chl_frame_state_cs_set_views()

void chl_frame_state_cs_set_views	(	struct chl_frame_state *	frame_state,
		const struct xrt_pose	world_pose[XRT_MAX_VIEWS],
		const struct xrt_pose	eye_pose[XRT_MAX_VIEWS],
		const struct xrt_fov	fov[XRT_MAX_VIEWS],
		uint32_t	layer_count
	)

Sets all the needed state to run the layer squasher to the scratch images, this is the compute version.

◆ chl_frame_state_fini()

void chl_frame_state_fini ( struct chl_frame_state * state )

Frees all resources that this frame state tracks and manages the scratch images state.

Must be called after the GPU work has finished and has been waited on (or the validation layer gets upset).

References chl_scratch_state::chl_scratch_state_discard_or_done(), and U_ZERO.

◆ chl_frame_state_gfx_default_pipeline()

static void chl_frame_state_gfx_default_pipeline	(	struct chl_frame_state *	frame_state,
		struct render_gfx *	render,
		const struct comp_layer *	layers,
		uint32_t	layer_count,
		const struct xrt_pose	world_poses[XRT_MAX_VIEWS],
		const struct xrt_pose	eye_poses[XRT_MAX_VIEWS],
		const struct xrt_fov	fovs[XRT_MAX_VIEWS],
		struct render_gfx_target_resources *	target_rtr,
		const struct render_viewport_data	target_viewport_datas[XRT_MAX_VIEWS],
		const struct xrt_matrix_2x2	vertex_rots[XRT_MAX_VIEWS]
	)

inlinestatic

A single do all function, runs the default graphics pipeline.

◆ chl_frame_state_gfx_set_target()

void chl_frame_state_gfx_set_target	(	struct chl_frame_state *	frame_state,
		struct render_gfx_target_resources *	target_rtr,
		const struct render_viewport_data	target_viewport_datas[XRT_MAX_VIEWS],
		const struct xrt_matrix_2x2	vertex_rots[XRT_MAX_VIEWS]
	)

Adds the needed information to also perform a distortion step, reuses some information from the _set_views call and as such this needs to be called before calling this function.

This is the graphics version.

◆ chl_frame_state_gfx_set_views()

void chl_frame_state_gfx_set_views	(	struct chl_frame_state *	frame_state,
		const struct xrt_pose	world_pose[XRT_MAX_VIEWS],
		const struct xrt_pose	eye_pose[XRT_MAX_VIEWS],
		const struct xrt_fov	fov[XRT_MAX_VIEWS],
		uint32_t	layer_count
	)

Sets all the needed state to run the layer squasher to the scratch images, this is the graphics version.

◆ chl_frame_state_init()

void chl_frame_state_init	(	struct chl_frame_state *	frame_state,
		struct render_resources *	rr,
		uint32_t	view_count,
		bool	do_timewarp,
		bool	fast_path,
		struct chl_scratch *	scratch
	)

Create the Vulkan resources using the given render_resources and the vk_bundle it refers to.

Is used for both graphics and compute paths, also manages the scratch state.

References chl_scratch_state::chl_scratch_state_init_and_get(), comp_render_initial_init(), U_ZERO, and render_resources::vk.

The documentation for this struct was generated from the following file:

compositor/util/comp_high_level_render.h
