oxr_session_attached_actions Struct Reference

Per-session map of action key to action attachment. More...

#include <oxr/actions/oxr_session_attached_actions.h>

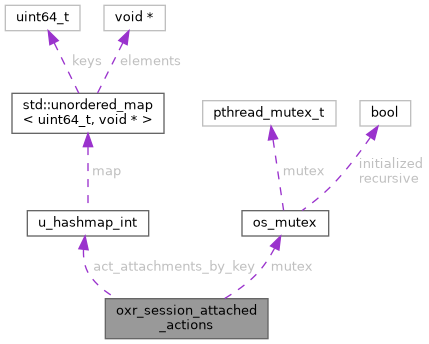

Collaboration diagram for oxr_session_attached_actions:

Public Member Functions
XRT_NONNULL_ALL XrResult	oxr_session_attached_actions_init (struct oxr_session_attached_actions *attached)
	Initialize the attached actions for a session.
XRT_NONNULL_ALL void	oxr_session_attached_actions_fini (struct oxr_session_attached_actions *attached)
	Finalize and cleanup the attached actions.
XRT_NONNULL_ALL XrResult	oxr_session_attached_actions_add_action_attachment (struct oxr_session_attached_actions *attached, struct oxr_action_attachment *act_attachment)
	Add a single action attachment to the map (thread-safe).
XRT_NONNULL_ALL void	oxr_session_attached_actions_remove_action_attachment (struct oxr_session_attached_actions *attached, struct oxr_action_attachment *act_attachment)
	Remove a single action attachment from the map (thread-safe).
XRT_NONNULL_ALL void	oxr_session_attached_actions_find (struct oxr_session_attached_actions *attached, uint32_t act_key, struct oxr_action_attachment **out_act_attached)
	Find an action attachment by action key (thread-safe).

Data Fields
struct u_hashmap_int *	act_attachments_by_key
	A map of action key to action attachment.
struct os_mutex	mutex

Detailed Description

Per-session map of action key to action attachment.

This is stored on the session (not on the action context) and tracks all action attachments from all action contexts. State-get and lookup functions (e.g. xrGetActionStateBoolean, haptics, pose) resolve an action by act_key only; they do not need to know which context the action came from. That way, a future extension that adds multiple action contexts per session can keep feeding this single map, and those functions will not need to change.

Member Function Documentation

oxr_session_attached_actions_add_action_attachment()

XRT_NONNULL_ALL XrResult oxr_session_attached_actions_add_action_attachment	(	struct oxr_session_attached_actions *	attached,
		struct oxr_action_attachment *	act_attachment
	)

Add a single action attachment to the map (thread-safe).

References act_attachments_by_key, and oxr_action_attachment::act_key.

oxr_session_attached_actions_find()

XRT_NONNULL_ALL void oxr_session_attached_actions_find	(	struct oxr_session_attached_actions *	attached,
		uint32_t	act_key,
		struct oxr_action_attachment **	out_act_attached
	)

Find an action attachment by action key (thread-safe).

References act_attachments_by_key.

oxr_session_attached_actions_fini()

XRT_NONNULL_ALL void oxr_session_attached_actions_fini

(

struct oxr_session_attached_actions *

attached

)

Finalize and cleanup the attached actions.

References act_attachments_by_key.

oxr_session_attached_actions_init()

XRT_NONNULL_ALL XrResult oxr_session_attached_actions_init

(

struct oxr_session_attached_actions *

attached

)

Initialize the attached actions for a session.

References act_attachments_by_key.

oxr_session_attached_actions_remove_action_attachment()

XRT_NONNULL_ALL void oxr_session_attached_actions_remove_action_attachment	(	struct oxr_session_attached_actions *	attached,
		struct oxr_action_attachment *	act_attachment
	)

Remove a single action attachment from the map (thread-safe).

References act_attachments_by_key, and oxr_action_attachment::act_key.

Field Documentation

act_attachments_by_key

struct u_hashmap_int* oxr_session_attached_actions::act_attachments_by_key

A map of action key to action attachment.

The action attachments are actually owned by the action set attachments, which are owned by the session action context.

If non-null, this means an action context (default or otherwise) action sets have been attached to the owning session, since this map points to oxr_action_attachment members of oxr_session_action_context::act_set_attachments elements.

Referenced by oxr_session_attached_actions_add_action_attachment(), oxr_session_attached_actions_find(), oxr_session_attached_actions_fini(), oxr_session_attached_actions_init(), and oxr_session_attached_actions_remove_action_attachment().

---

The documentation for this struct was generated from the following file:

• state_trackers/oxr/actions/oxr_session_attached_actions.h
