xrt_byte_order.h File Reference

Endian-specific byte order defines. More...

#include "xrt_compiler.h"
#include <stdint.h>

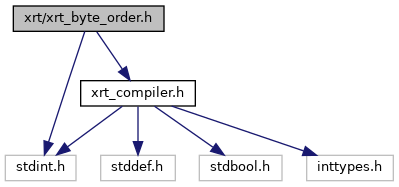

Include dependency graph for xrt_byte_order.h:

Go to the source code of this file.

Data Structures
struct	__lef32
	Little endian 32-bit float wrapper struct. More...
struct	__bef32
	Big endian 32-bit float wrapper struct. More...
struct	__levec2
struct	__levec3

Macros
#define	__be64   uint64_t
#define	__be32   uint32_t
#define	__be16   uint16_t
#define	__be16_to_cpu(x)   ((((uint16_t)x & (uint16_t)0x00FFU) << 8) | (((uint16_t)x & (uint16_t)0xFF00U) >> 8))
#define	__cpu_to_be16(x)   __be16_to_cpu(x)
#define	__be32_to_cpu(x)
#define	__cpu_to_be32(x)   __be32_to_cpu(x)
#define	__be64_to_cpu(x)
#define	__cpu_to_be64(x)   __be64_to_cpu(x)
#define	__le64   uint64_t
#define	__le32   uint32_t
#define	__le16   uint16_t
#define	__u8   uint8_t
#define	__s8   int8_t
#define	__cpu_to_le16
#define	__le16_to_cpu
#define	__cpu_to_le32
#define	__le32_to_cpu
#define	__cpu_to_le64
#define	__le64_to_cpu

Functions
static float	__lef32_to_cpu (__lef32 f)
static __lef32	__cpu_to_lef32 (float f)
static float	__bef32_to_cpu (__bef32 f)
static __bef32	__cpu_to_bef32 (float f)
static struct xrt_vec2	__levec2_to_cpu (struct __levec2 v)
static struct __levec2	__cpu_to_levec2 (struct xrt_vec2 v)
static struct xrt_vec3	__levec3_to_cpu (struct __levec3 v)
static struct __levec3	__cpu_to_levec3 (struct xrt_vec3 v)

Detailed Description

Endian-specific byte order defines.

Author

Beyley Cardellio ep1cm.nosp@m.1n10.nosp@m.n123@.nosp@m.gmai.nosp@m.l.com

Macro Definition Documentation

__be32_to_cpu

#define __be32_to_cpu

(

x

)

Value:

        ((((uint32_t)x & (uint32_t)0x000000FFUL) << 24) | (((uint32_t)x & (uint32_t)0x0000FF00UL) << 8) |              \
         (((uint32_t)x & (uint32_t)0x00FF0000UL) >> 8) | (((uint32_t)x & (uint32_t)0xFF000000UL) >> 24))

__be64_to_cpu

#define __be64_to_cpu

(

x

)

Value:

        ((((uint64_t)x & (uint64_t)0x00000000000000FFULL) << 56) |                                                     \
         (((uint64_t)x & (uint64_t)0x000000000000FF00ULL) << 40) |                                                     \
         (((uint64_t)x & (uint64_t)0x0000000000FF0000ULL) << 24) |                                                     \
         (((uint64_t)x & (uint64_t)0x00000000FF000000ULL) << 8) |                                                      \
         (((uint64_t)x & (uint64_t)0x000000FF00000000ULL) >> 8) |                                                      \
         (((uint64_t)x & (uint64_t)0x0000FF0000000000ULL) >> 24) |                                                     \
         (((uint64_t)x & (uint64_t)0x00FF000000000000ULL) >> 40) |                                                     \
         (((uint64_t)x & (uint64_t)0xFF00000000000000ULL) >> 56)) |
