xrt::tracking::constellation::optimizer::Pose< T > Struct Template Reference

Pose with 6 degrees of freedom, translation and rotation. More...

#include </builds/monado/monado/src/xrt/tracking/constellation/optimizer/internal_math.hpp>

Inheritance diagram for xrt::tracking::constellation::optimizer::Pose< T >:

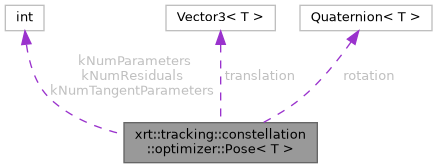

Collaboration diagram for xrt::tracking::constellation::optimizer::Pose< T >:

Public Member Functions
	Pose (Quaternion< T > quat)
	Pose (xrt_pose pose)
	Pose (Eigen::Ref< const Vector< T, kNumParameters > > parameters)
template<typename TransformType >
	Pose (const Eigen::Transform< TransformType, 3, Eigen::Isometry > &transform)
void	pack (Eigen::Ref< Vector< T, kNumParameters > > parameters) const
Eigen::Transform< T, 3, Eigen::Isometry >	toTransform () const
void	getQuaternion (Quaternion< T > &q) const
xrt_pose	toXrtPose () const

Data Fields
Vector3< T >	translation
Quaternion< T >	rotation

Static Public Attributes
static constexpr int	kNumParameters = 7
	Size of the parameter block handed to Ceres: (tX, tY, tZ), (qX, qY, qZ, qW).
static constexpr int	kNumTangentParameters = 6
	Degrees of freedom the manifold exposes to the solver.
static constexpr int	kNumResiduals = 6

Detailed Description

template<typename T>
struct xrt::tracking::constellation::optimizer::Pose< T >

Pose with 6 degrees of freedom, translation and rotation.

Stored as a translation and a unit quaternion, so the ambient block is one larger than the 6 degrees of freedom it stands for. PoseManifold supplies the retraction that takes the tangent space back to 6.

Field Documentation

kNumParameters

template<typename T >

constexpr int xrt::tracking::constellation::optimizer::Pose< T >::kNumParameters = 7

staticconstexpr

Size of the parameter block handed to Ceres: (tX, tY, tZ), (qX, qY, qZ, qW).

kNumTangentParameters

template<typename T >

constexpr int xrt::tracking::constellation::optimizer::Pose< T >::kNumTangentParameters = 6

staticconstexpr

Degrees of freedom the manifold exposes to the solver.

---

The documentation for this struct was generated from the following file:

• tracking/constellation/optimizer/internal_math.hpp
