A cache of flattened device inputs and outputs. More...

#include <xrt/xrt_io_cache.h>

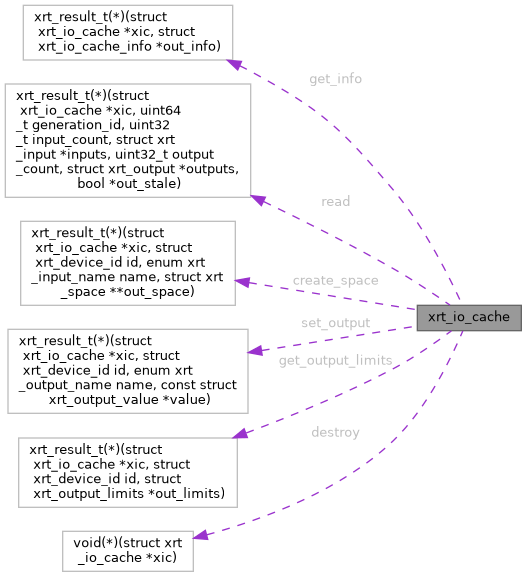

Collaboration diagram for xrt_io_cache:

[legend]

Static Public Member Functions
static XRT_NONNULL_ALL xrt_result_t	xrt_io_cache_get_info (struct xrt_io_cache xic, struct xrt_io_cache_info out_info)
	Query the current cache layout.

static xrt_result_t	xrt_io_cache_read (struct xrt_io_cache xic, uint64_t generation_id, uint32_t input_count, struct xrt_input inputs, uint32_t output_count, struct xrt_output outputs, bool out_stale)
	Read the current input and output values into caller-provided arrays.

static XRT_NONNULL_ALL xrt_result_t	xrt_io_cache_create_space (struct xrt_io_cache xic, struct xrt_device_id id, enum xrt_input_name name, struct xrt_space *out_space)
	Create a space for an input on a specific device.

static XRT_NONNULL_ALL xrt_result_t	xrt_io_cache_set_output (struct xrt_io_cache xic, struct xrt_device_id id, enum xrt_output_name name, const struct xrt_output_value value)
	Set an output value on a specific device.

static XRT_NONNULL_ALL xrt_result_t	xrt_io_cache_get_output_limits (struct xrt_io_cache xic, struct xrt_device_id id, struct xrt_output_limits out_limits)
	Query the (device-wide) output limits for a device.

static XRT_NONNULL_ALL void	xrt_io_cache_destroy (struct xrt_io_cache **xic_ptr)
	Destroy an xrt_io_cache - helper function.

Data Fields
xrt_result_t(*	get_info )(struct xrt_io_cache xic, struct xrt_io_cache_info out_info)
	Query the current cache layout.

xrt_result_t(*	read )(struct xrt_io_cache xic, uint64_t generation_id, uint32_t input_count, struct xrt_input inputs, uint32_t output_count, struct xrt_output outputs, bool out_stale)
	Read the current input and output values into caller-provided arrays.

xrt_result_t(*	create_space )(struct xrt_io_cache xic, struct xrt_device_id id, enum xrt_input_name name, struct xrt_space *out_space)
	Create a space for an input on a specific device.

xrt_result_t(*	set_output )(struct xrt_io_cache xic, struct xrt_device_id id, enum xrt_output_name name, const struct xrt_output_value value)
	Set an output value on a specific device.

xrt_result_t(*	get_output_limits )(struct xrt_io_cache xic, struct xrt_device_id id, struct xrt_output_limits out_limits)
	Query the (device-wide) output limits for a device.

void(*	destroy )(struct xrt_io_cache *xic)
	Destroy this cache.

Detailed Description

A cache of flattened device inputs and outputs.

Member Function Documentation

◆ xrt_io_cache_create_space()

static XRT_NONNULL_ALL xrt_result_t xrt_io_cache_create_space	(	struct xrt_io_cache *	xic,
		struct xrt_device_id	id,
		enum xrt_input_name	name,
		struct xrt_space **	out_space
	)

inlinestatic

Create a space for an input on a specific device.

Parameters

xic	Pointer to self.
id	Device to create the space on.
name	Input name to bind the space to.
out_space	Created space.

References create_space.

◆ xrt_io_cache_destroy()

static XRT_NONNULL_ALL void xrt_io_cache_destroy ( struct xrt_io_cache ** xic_ptr )

inlinestatic

Destroy an xrt_io_cache - helper function.

Parameters

[in,out] xic_ptr A pointer to the xrt_io_cache struct pointer.

Will destroy the cache if *xic_ptr is not NULL. Will then set *xic_ptr to NULL.

References destroy.

Referenced by ipc_server_objects_destroy_xic().

◆ xrt_io_cache_get_info()

static XRT_NONNULL_ALL xrt_result_t xrt_io_cache_get_info	(	struct xrt_io_cache *	xic,
		struct xrt_io_cache_info *	out_info
	)

inlinestatic

Query the current cache layout.

Parameters

xic	Pointer to self.
out_info	Resulting layout snapshot.

References get_info.

◆ xrt_io_cache_get_output_limits()

static XRT_NONNULL_ALL xrt_result_t xrt_io_cache_get_output_limits	(	struct xrt_io_cache *	xic,
		struct xrt_device_id	id,
		struct xrt_output_limits *	out_limits
	)

inlinestatic

Query the (device-wide) output limits for a device.

Parameters

xic	Pointer to self.
id	Device to query.
out_limits	Resulting limits.

References get_output_limits.

◆ xrt_io_cache_read()

static xrt_result_t xrt_io_cache_read	(	struct xrt_io_cache *	xic,
		uint64_t	generation_id,
		uint32_t	input_count,
		struct xrt_input *	inputs,
		uint32_t	output_count,
		struct xrt_output *	outputs,
		bool *	out_stale
	)

inlinestatic

Read the current input and output values into caller-provided arrays.

Parameters

xic	Pointer to self.
generation_id	Layout generation from the most recent get_info call.
input_count	Capacity of `inputs`; must match the layout snapshot.
inputs	Output array for input values.
output_count	Capacity of `outputs`; must match the layout snapshot.
outputs	Output array for output metadata.
out_stale	Set to true when `generation_id` no longer matches the live layout; the arrays are not written in that case.

Returns: XRT_ERROR_INVALID_ARGUMENT if input_count or output_count do not match the current layout while the generation still matches.

References xrt_io_cache_device::input_count, xrt_io_cache_device::output_count, and read.

◆ xrt_io_cache_set_output()

static XRT_NONNULL_ALL xrt_result_t xrt_io_cache_set_output	(	struct xrt_io_cache *	xic,
		struct xrt_device_id	id,
		enum xrt_output_name	name,
		const struct xrt_output_value *	value
	)

inlinestatic

Set an output value on a specific device.

Parameters

xic	Pointer to self.
id	Device to set the output on.
name	Output name.
value	Value to write.

References set_output.

Field Documentation

◆ create_space

xrt_result_t(* xrt_io_cache::create_space) (struct xrt_io_cache *xic, struct xrt_device_id id, enum xrt_input_name name, struct xrt_space **out_space)

Create a space for an input on a specific device.

Parameters

xic	Pointer to self.
id	Device to create the space on.
name	Input name to bind the space to.
out_space	Created space.

Referenced by xrt_io_cache_create_space().

◆ destroy

void(* xrt_io_cache::destroy) (struct xrt_io_cache *xic)

Destroy this cache.

Code consuming this interface should use xrt_io_cache_destroy.

Referenced by xrt_io_cache_destroy().

◆ get_info

xrt_result_t(* xrt_io_cache::get_info) (struct xrt_io_cache *xic, struct xrt_io_cache_info *out_info)

Query the current cache layout.

Parameters

xic	Pointer to self.
out_info	Resulting layout snapshot.

Referenced by xrt_io_cache_get_info().

◆ get_output_limits

xrt_result_t(* xrt_io_cache::get_output_limits) (struct xrt_io_cache *xic, struct xrt_device_id id, struct xrt_output_limits *out_limits)

Query the (device-wide) output limits for a device.

Parameters

xic	Pointer to self.
id	Device to query.
out_limits	Resulting limits.

Referenced by xrt_io_cache_get_output_limits().

◆ read

xrt_result_t(* xrt_io_cache::read) (struct xrt_io_cache *xic, uint64_t generation_id, uint32_t input_count, struct xrt_input *inputs, uint32_t output_count, struct xrt_output *outputs, bool *out_stale)

Read the current input and output values into caller-provided arrays.

Parameters

xic	Pointer to self.
generation_id	Layout generation from the most recent get_info call.
input_count	Capacity of `inputs`; must match the layout snapshot.
inputs	Output array for input values.
output_count	Capacity of `outputs`; must match the layout snapshot.
outputs	Output array for output metadata.
out_stale	Set to true when `generation_id` no longer matches the live layout; the arrays are not written in that case.

Returns: XRT_ERROR_INVALID_ARGUMENT if input_count or output_count do not match the current layout while the generation still matches.

Referenced by xrt_io_cache_read().

◆ set_output

xrt_result_t(* xrt_io_cache::set_output) (struct xrt_io_cache *xic, struct xrt_device_id id, enum xrt_output_name name, const struct xrt_output_value *value)

Set an output value on a specific device.

Parameters

xic	Pointer to self.
id	Device to set the output on.
name	Output name.
value	Value to write.

Referenced by xrt_io_cache_set_output().

The documentation for this struct was generated from the following file:

xrt/xrt_io_cache.h
