A routine to automatically refine latency offsets of LED blink times using constellation samples. More...

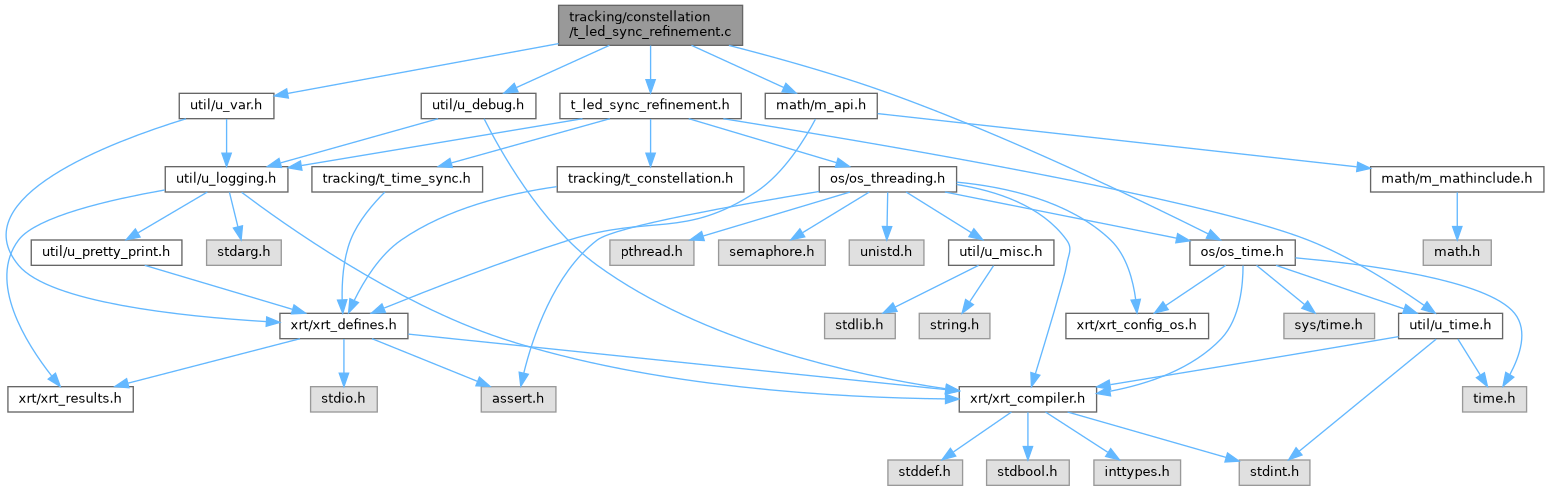

#include "util/u_var.h"#include "util/u_debug.h"#include "math/m_api.h"#include "os/os_time.h"#include "t_led_sync_refinement.h"
Macros | |
| #define | LOG_TRACE(refinement, ...) U_LOG_IFL_T(refinement->log_level, __VA_ARGS__) |
| #define | LOG_DEBUG(refinement, ...) U_LOG_IFL_D(refinement->log_level, __VA_ARGS__) |
| #define | LOG_INFO(refinement, ...) U_LOG_IFL_I(refinement->log_level, __VA_ARGS__) |
| #define | LOG_WARN(refinement, ...) U_LOG_IFL_W(refinement->log_level, __VA_ARGS__) |
| #define | LOG_ERROR(refinement, ...) U_LOG_IFL_E(refinement->log_level, __VA_ARGS__) |
| #define | MAX_SAMPLE_LATENCY 3 |
| The amount of frames to not see it for consider a device "not found" during an active search. | |
Functions | |
| static time_duration_ns | change_good_cutoff (struct t_led_sync_refinement *refinement) |
| The amount of time of which a change under this amount is considered "good" and we can exit the binary search. | |
| static uint32_t | frames_since_sample_apply (struct t_led_sync_refinement *refinement, timepoint_ns now_ns) |
| The amount of frames since the sample was applied to the controller. | |
| static void | set_offset_duration (struct t_led_sync_refinement *refinement, time_duration_ns latency_offset_ns, time_duration_ns fudge_offset_ns, time_duration_ns blink_duration_ns) |
| static void | set_centered_duration (struct t_led_sync_refinement *refinement, time_duration_ns blink_duration_ns) |
| static time_duration_ns | get_search_period_locked (struct t_led_sync_refinement *refinement) |
| Gets the period to iterate over when searching for a latency offset. | |
| static void | set_phase_locked (struct t_led_sync_refinement *refinement, enum t_led_sync_phase new_phase) |
| static void | handle_find_initial_offset (struct t_led_sync_refinement *refinement) |
| static void | handle_find_right_edge (struct t_led_sync_refinement *refinement) |
| static void | handle_find_left_edge (struct t_led_sync_refinement *refinement) |
| static void | handle_refine_blink_duration (struct t_led_sync_refinement *refinement) |
| static void | handle_maintain_offset (struct t_led_sync_refinement *refinement) |
| static void | handle_timing_event_locked (struct t_led_sync_refinement *refinement, const struct t_timing_event_camera_exposure_start *event) |
| static void | handle_constellation_sample_locked (struct t_led_sync_refinement *refinement, const struct t_constellation_tracker_sample *sample) |
| int | t_led_sync_refinement_init (struct t_led_sync_refinement *refinement, const struct t_led_sync_refinement_options *options) |
| void | t_led_sync_refinement_destroy (struct t_led_sync_refinement *refinement) |
| void | t_led_sync_push_timing_event (struct t_led_sync_refinement *refinement, const struct t_timing_event_camera_exposure_start *event) |
| void | t_led_sync_push_constellation_sample (struct t_led_sync_refinement *refinement, const struct t_constellation_tracker_sample *sample) |
| bool | t_led_sync_get_sample (struct t_led_sync_refinement *refinement, struct t_led_sync_sample *out_sample) |
| void | t_led_sync_mark_latest_sample_applied (struct t_led_sync_refinement *refinement, timepoint_ns apply_time_ns) |
| void | t_led_sync_update_minimum_blink_time (struct t_led_sync_refinement *refinement, time_duration_ns new_minimum_ns) |
Detailed Description
A routine to automatically refine latency offsets of LED blink times using constellation samples.
Macro Definition Documentation
◆ MAX_SAMPLE_LATENCY
| #define MAX_SAMPLE_LATENCY 3 |
The amount of frames to not see it for consider a device "not found" during an active search.
Function Documentation
◆ change_good_cutoff()
|
static |
The amount of time of which a change under this amount is considered "good" and we can exit the binary search.
References t_led_sync_refinement::current_blink_duration_ns, t_led_sync_refinement::exposure_time_ns, and MIN.
◆ frames_since_sample_apply()
|
static |
The amount of frames since the sample was applied to the controller.
References t_led_sync_refinement::exposure_interval_ns, and t_led_sync_refinement::last_sample_apply_time_ns.
◆ get_search_period_locked()
|
static |
Gets the period to iterate over when searching for a latency offset.
References t_led_sync_refinement::current_blink_duration_ns, t_led_sync_refinement::exposure_time_ns, t_led_sync_refinement::has_exposure_time, MAX, MIN, t_led_sync_refinement::phase, and T_LED_SYNC_SEARCH_PHASE_FIND_INITIAL_OFFSET.
